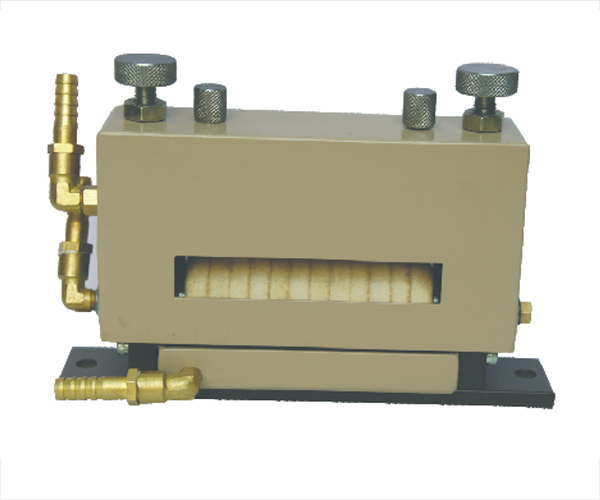

JSM Roller Lubricator for Coil Lubrication

JSM Roller Lubricator for Coil Lubrication

Coil Stock lubrication system

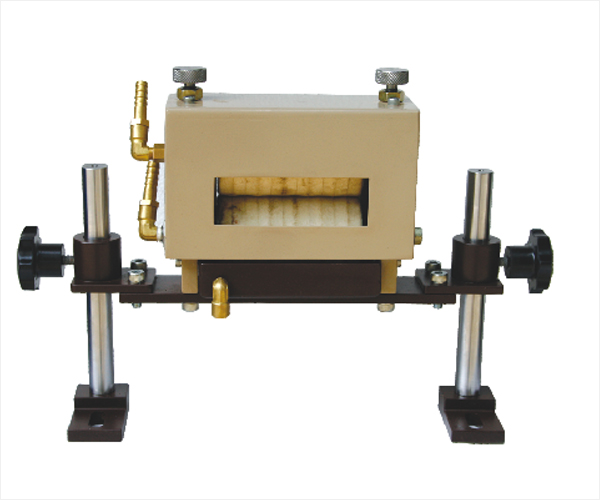

JSM Roller Lubricator With Height Adjustment Stand

coil-stock-lubrication-system

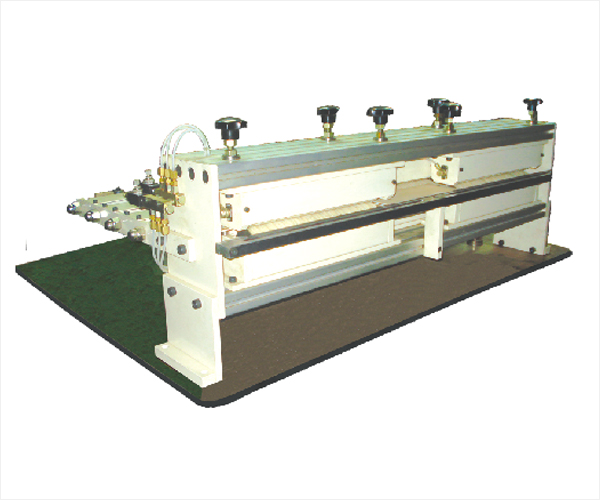

JSM Automatic Lubrication System for Sheet Lubrication

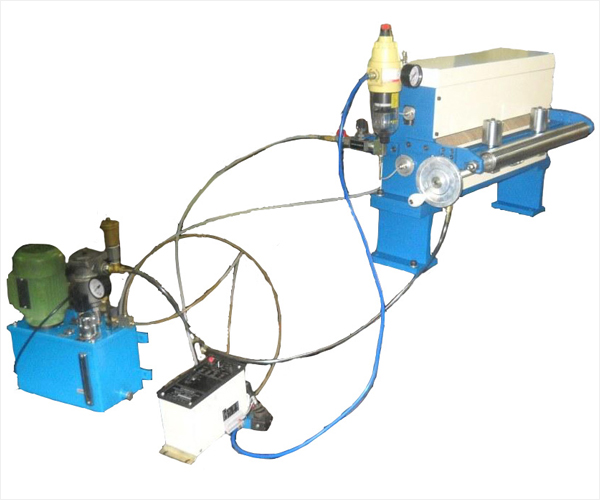

Automatic Roller Lubricating System

Automatic Roller Lubricating System

JSM Lubrication System

JSM Lubrication System

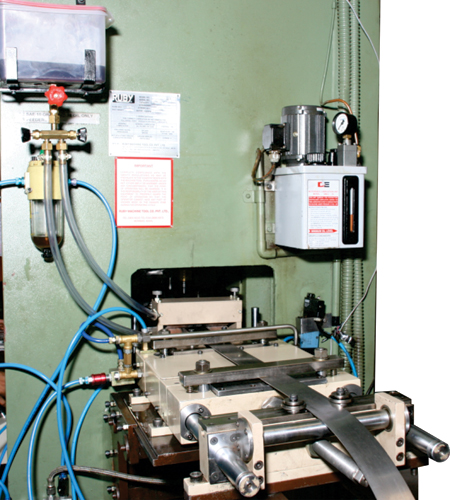

Roller lubrocation system

JSM Lubrication System

ROLLER LUBRICATION SYSTEM

A Right Lubrication System plays a very important role in any metal forming application. Roller lubrication system are desgined to lubricate coil / strip & Die irresctive of type and thicness of material. They can accommodate any material movement (speed), crown, camber or even unstraightened stock.

Roller Lubrication System are designed in modular way and have similar features between smallest unit to largest units. Due to modular design sizes uptill 1800mm can be build irrespective of material, speed, thickness. They are available in 3 basic models.

1) Gravity Roller lubrication system
Any kind of liquid libricant is evenly distributed to the absorbent Rollers. Oil flow to each Roller is individually controlled by metering valves, which are installed on a transparent reservoir tank that to indicate oil level.

Adjustable tension speings help to apply the adequate oil film by supplying enough pressure to squeeze off any excess which is then recycled to the unit.

2) Automatic Roller Lubrication System
At the heart of the system is a positive displacement lubricant pump which precisely dispeness the lubricant to the Rollers. The output of this pump is fully adjustable, so it can be tailored to any opertion. The advantage of the system is that it supplies the exact amount of lubricant required for any particular operation. This eliminates the mess and waste associated with mannual system and Gravity Roller Lubrication System. By applying proper amount of lubricant, there is little clean up required and no recirculating coolants to treat or dispose. This means a cleaner shop & less overhead, not to mention the savings due to reduced tool wear, improved part quality, and increased production rates.

Applications

  • Punching
  • Stamping
  • Fine Blanking
  • Deep Drawing
  • Roll Forming
  • Cold Extrusion
  • Appllication of Rust Preventives and Other Proactive Coatings
  • Multi - Sildes
  • Punching / Forming

    • Benefits

  • Reduced Oil Consumption
  • Inceased Die life
  • Improved Part Quality
  • Increased Production Reates
  • Decreased Part Cleaning
  • Cleaner Work Area
  • Lower Maintenaance then any other system
  • Fluid Recycling
  • Less Fluid Management Concerns

    • Normal Speed Model

    MODELS OF JSM GRAVITY COIL STOCK LUBRICATION SYSTEM
    Model
    Width
    Thickness
    GLS-10
    100mm
    0.1-3.0 mm
    GLS-15
    150mm
    0.1-3.0 mm
    GLS-20
    200mm
    0.1-3.0 mm
    GLS-30
    300mm
    0.1-3.0 mm

    Technical specifications are indicative and subject to change to suit end application.
